# User Defined Fields

<figure><img src="https://490131596-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F0LJDMCSYOqplCEgCo73X%2Fuploads%2Fob8QJn5YWpsYRvuXzkxV%2Fimage.png?alt=media&#x26;token=4083434a-a444-4223-bf9a-5fb73af4af3d" alt=""><figcaption></figcaption></figure>

***

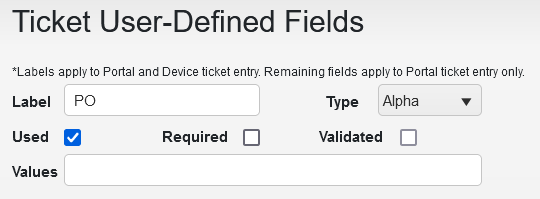

## Ticket User-Defined Fields

<figure><img src="https://490131596-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F0LJDMCSYOqplCEgCo73X%2Fuploads%2FLx19EDHnDT1ohp3B93BE%2Fimage.png?alt=media&#x26;token=8803b7be-8bab-4e37-8c03-7d41f50db10a" alt="" width="405"><figcaption></figcaption></figure>

These UDFs will display on the Web Portal [Ticket Entry](https://help.tacinsight.com/fast-weigh-knowledge-base/references/web-portal/tickets/ticket-entry), and can be turned on for your individual Ticket Devices in the [Devices](https://help.tacinsight.com/fast-weigh-knowledge-base/references/web-portal/account-and-administration/devices) menu.

* *Label:* Field to be used during ticketing.
* *Used:* Enables this UDF to be used when ticketing.
* *Type:* Adjusts the entry to be **Alpha** (letters or numbers) or **Numbers** (numbers only).
* *Required:* Enforces use of this UDF.
* *Validated:* Works with the *Values* option to create a drop-down menu.
* *Values:* Enter preset options to be selected from a drop-down menu. These *Values* are separated by a comma, with no spaces.
  * Ex: (*Value1,Value2,Value3*) - **Correct**
  * Ex: (Value1, Value2, Value3) - **Incorrect**
* **Save** your entry when completed.

***

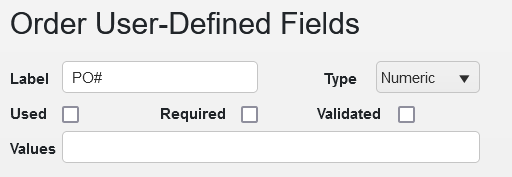

## Order User-Define Fields

<figure><img src="https://490131596-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F0LJDMCSYOqplCEgCo73X%2Fuploads%2FNG6ZEMmYN9yQ83BQ4k9N%2Fimage.png?alt=media&#x26;token=a0d524b8-40d1-49c1-86ad-f0c7c8f67065" alt="" width="384"><figcaption></figcaption></figure>

These UDFs will show on the [Order creation screen](https://help.tacinsight.com/fast-weigh-knowledge-base/references/web-portal/orders/orders) to allow for any extra information that needs to be attached to an Order.

* *Label:* Field to be used during Order setup.
* *Used:* Enables this EDF to be used.
* *Type:* Adjusts the entry to be *Alpha* (letters or numbers) or *Numeric* (numbers only).
* *Required:* Enforces use of this UDF.
* *Validated:* Works with the *Values* option to create a drop-down menu.
* *Values:* Enter preset options to be selected from a drop-down menu. These *Values* are separated by a comma, with no spaces.
  * Ex: (*Value1,Value2,Value3*) - **Correct**
  * Ex: (Value1, Value2, Value3) - **Incorrect**
* **Save** your entry when completed.

***

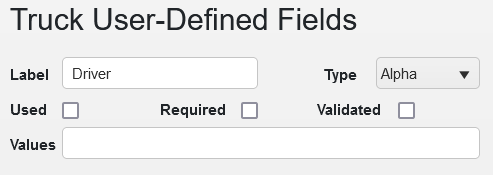

## Truck User-Defined Fields

<figure><img src="https://490131596-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F0LJDMCSYOqplCEgCo73X%2Fuploads%2FzgjDX2u34ThrNZ0hZ8ZB%2Fimage.png?alt=media&#x26;token=f5ab3db4-eb30-453b-8e70-963371d568e5" alt="" width="370"><figcaption></figcaption></figure>

These UDFs will show on the [Truck setup screen](https://help.tacinsight.com/fast-weigh-knowledge-base/references/web-portal/trucks) to allow for any extra information that needs to be attached to a Truck.

***

<figure><img src="https://490131596-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F0LJDMCSYOqplCEgCo73X%2Fuploads%2FzcpfYhHtZKrCXOlIyFge%2Fimage.png?alt=media&#x26;token=3cbbd591-bc75-494b-b672-bae61eb0795d" alt="" width="375"><figcaption></figcaption></figure>

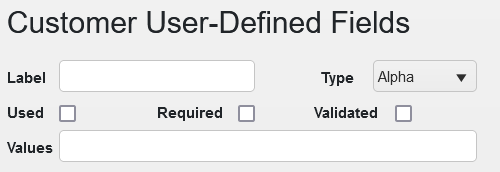

These UDFs will show on the [Customer setup screen](https://help.tacinsight.com/fast-weigh-knowledge-base/references/web-portal/resources/customer) to allow for any extra information that needs to be added to a Customer.

* *Label:* Field to be used during Customer setup.
* *Used:* Enables this EDF to be used.
