Reporting with GraphQL

Using Power BI and Telerik with Fast-Weigh GraphQL

Helpful Telerik Links

Telerik Support Page

Telerik Designing Reports Knowledge Base

Telerik Reporting Forum

Getting Started with Telerik Report Designer (Video)

Web Service Data Source Information

Report Parameters Overview

Report Structure Overview

Expressions Overview

Functions Overview

Sorting Data Overview

Filtering Data Overview

Grouping Data Overview

Conditional Formatting

Excel Rendering Design Considerations

Connecting Power BI to GraphQL

GraphQL can be connected into Power BI to visualize your data. In order to connect it up, you will need to be familiar enough with M Query to manipulate the Data Source Advanced Editor to connect in the API

  1. Create a new Power BI File and click Get Data.

  2. Select a Blank Query as your Data Source for now.

  3. Leave this blank.

  4. Add in a new parameter called x-api-key , set the Type to Text, and paste your API Key into the Current Value.

  5. Add in PBI parameters for any variables in your GraphQL Query.

  6. In this example, we have a To and From Date variable that we call RangeStart and RangeEnd in the PBI Parameters.

  7. Your Queries should look something like this:

  8. Navigate back to your blank Query .

  9. Right-click the name in the Queries list and select advanced editor .

  10. Copy and paste the pre-written query below into the Advanced Editor (overwriting what was already there).

  11. It will automatically use your API key and the date parameters you set with a pre-written Get Ticket query.

  12.       let
      //To and From Date PBI parameters, formatted in yyyy-MM-dd format
      FromDate = Number.ToText(Date.Year(RangeStart)) &"-"& Text.PadStart(Number.ToText(Date.Month(RangeStart)),2,"0") &"-"& Text.PadStart(Number.ToText(Date.Day(RangeStart)),2,"0"),
      ToDate = Number.ToText(Date.Year(RangeEnd))&"-"&Text.PadStart(Number.ToText(Date.Month(RangeEnd)),2,"0")&"-"&Text.PadStart(Number.ToText(Date.Day(RangeEnd)),2,"0"),
      //URL should be your GraphQL Endpoint URL
      url = "https://fwt.fast-weigh.dev/v1/graphql",
      //Header pulls API Key from x-api-key PBI parameter
      header =
      [#"x-api-key" = #"x-api-key",
      #"Content-Type" = "application/json"],
      //Body is copied from Insomnia "Fast-Weigh: Copy Telerik Body" plugin
      //You will need to surround the body in quotes, and then escape any internal body quotes by using 2 in a row instead of one: ""
      //In the variables, you need to add 3 quotes to end the statement, an ampersand to join the parameters, and the PBI parameter name.
      //For Example: "" " & FromDate & " ""
      RequestBody=
      "{
      ""query"": ""query GetTickets($FromDate: date!, $ToDate: date!) {\n  LoadTicket(\n    where: {_and: [\n                        {TicketDate: {_gte: $FromDate}}, \n                        {TicketDate: {_lte: $ToDate}}\n                ]}\n        ) \n        {\n    TicketKey # Unique, auto-assigned key\n    TicketNumber\n    Void\n    NetWeight\n    Operator\n    InvoiceNum\n    BatchNum\n    InvoiceHistoryKey\n    InvoiceDate\n    TicketDate # Only the Date\n    TicketDateTime # The Date and the Time in UTC\n    UTCOffset # The UTCoffset that needs to be added to the TicketDateTime to get the correct time\n    OrderProduct { # The specific version of a Product on an Order\n      OrderProductKey # Unique, auto-assigned key\n      Description # The pricing description for the specific version of the product\n      FreightType\n      Product { # The Product used for the OrderProduct\n        ProductKey # Unique, auto-assigned key\n        ProductID\n        ProductDescription\n        UnitOfMeasure\n      }\n      Location {\n        LocationKey # Unique, auto-assigned key\n        LocationName\n        LocationDescription\n      }\n      Yard {\n              YardKey # Unique, auto-assigned key\n        YardName\n        YardDescription\n      }\n    }\n    Order {\n      OrderKey # Unique, auto-assigned key\n      OrderNumber\n      Description\n      DefaultJob\n      PONumber\n      OpenProductOrder\n      Status\n      DeliveryLocation\n      PayType\n      UseHaulZones\n      Customer {\n        CustomerKey # Unique, auto-assigned key\n        CustomerID\n        CustomerName\n        TermsCode\n        Salesperson { # Default Salesperson set on Customer\n          Name\n        }\n      }\n      Salesperson { # Actual Salesperson set on the Order\n        Name\n      }\n    }\n    Region {\n      RegionKey # Unique, auto-assigned key\n      RegionName\n      RegionDescription\n    }\n    TaxCode { # The Tax Code set on the Ticket and what is used for Billing\n      Code\n      Description\n      MaterialPercent\n      MaterialPercent2\n      FreightPercent\n      FreightPercent2\n      SurchargePercent\n      SurchargePercent2\n    }\n    Truck {\n      TruckKey # Unique, auto-assigned key\n      TruckID\n      Hauler {\n        HaulerKey # Unique, auto-assigned key\n        HaulerID\n        HaulerName\n      }\n    }\n    HaulZone{\n      FreightType\n    }\n    RatesAndAmounts { # The dollar amounts on the Tickets\n      MaterialRateOriginal\n      FreightRateOriginal\n      SurchargeRateOriginal\n      MaterialAmountCalculated\n      FreightAmountCalculated\n      SurchargeAmountCalculated\n      MaterialTaxCalculated\n      MaterialTax2Calculated\n      FreightTaxCalculated\n      FreightTax2Calculated\n      SurchargeTaxCalculated\n      SurchargeTax2Calculated\n      HaulerRateOriginal\n      HaulerAmountCalculated\n    }\n  }\n}\n"",
      ""variables"": {
      ""FromDate"": """ & FromDate & """,
      ""ToDate"": """ & ToDate & """
      }
      }",
      //The following 5 steps convert the response to a table that Power BI can expand
      webdata = Web.Contents(url, [Headers=header, Content = Text.ToBinary(RequestBody)]),
      response = Json.Document(webdata),
      data = response[data],
      LoadTicket = data[LoadTicket],
      ConvertToTable = Table.FromList(LoadTicket, Splitter.SplitByNothing(), null, null, ExtraValues.Error),
      //These steps can be done directly in the editor by expanding each column from the header
      #"Expanded Column1" = Table.ExpandRecordColumn(ConvertToTable, "Column1", {"TicketKey", "TicketNumber", "Void", "NetWeight", "Operator", "InvoiceNum", "BatchNum", "InvoiceHistoryKey", "InvoiceDate", "TicketDate", "TicketDateTime", "UTCOffset", "OrderProduct", "Order", "Region", "TaxCode", "Truck", "HaulZone", "RatesAndAmounts"}, {"TicketKey", "TicketNumber", "Void", "NetWeight", "Operator", "InvoiceNum", "BatchNum", "InvoiceHistoryKey", "InvoiceDate", "TicketDate", "TicketDateTime", "UTCOffset", "OrderProduct", "Order", "Region", "TaxCode", "Truck", "HaulZone", "RatesAndAmounts"}),
      #"Expanded OrderProduct" = Table.ExpandRecordColumn(#"Expanded Column1", "OrderProduct", {"OrderProductKey", "Description", "FreightType", "Product", "Location", "Yard"}, {"OrderProductKey", "Description", "FreightType", "Product", "Location", "Yard"}),
      #"Expanded Product" = Table.ExpandRecordColumn(#"Expanded OrderProduct", "Product", {"ProductKey", "ProductID", "ProductDescription", "UnitOfMeasure"}, {"ProductKey", "ProductID", "ProductDescription", "UnitOfMeasure"}),
      #"Expanded Location" = Table.ExpandRecordColumn(#"Expanded Product", "Location", {"LocationKey", "LocationName", "LocationDescription"}, {"LocationKey", "LocationName", "LocationDescription"}),
      #"Expanded Yard" = Table.ExpandRecordColumn(#"Expanded Location", "Yard", {"YardKey", "YardName", "YardDescription"}, {"YardKey", "YardName", "YardDescription"}),
      #"Expanded Order" = Table.ExpandRecordColumn(#"Expanded Yard", "Order", {"OrderKey", "OrderNumber", "Description", "DefaultJob", "PONumber", "OpenProductOrder", "Status", "DeliveryLocation", "PayType", "UseHaulZones", "Customer", "Salesperson"}, {"OrderKey", "OrderNumber", "Description.1", "DefaultJob", "PONumber", "OpenProductOrder", "Status", "DeliveryLocation", "PayType", "UseHaulZones", "Customer", "Salesperson"}),
      #"Expanded Customer" = Table.ExpandRecordColumn(#"Expanded Order", "Customer", {"CustomerKey", "CustomerID", "CustomerName", "TermsCode", "Salesperson"}, {"CustomerKey", "CustomerID", "CustomerName", "TermsCode", "Salesperson.1"}),
      #"Expanded Region" = Table.ExpandRecordColumn(#"Expanded Customer", "Region", {"RegionKey", "RegionName", "RegionDescription"}, {"RegionKey", "RegionName", "RegionDescription"}),
      #"Expanded TaxCode" = Table.ExpandRecordColumn(#"Expanded Region", "TaxCode", {"Code", "Description", "MaterialPercent", "MaterialPercent2", "FreightPercent", "FreightPercent2", "SurchargePercent", "SurchargePercent2"}, {"Code", "Description.2", "MaterialPercent", "MaterialPercent2", "FreightPercent", "FreightPercent2", "SurchargePercent", "SurchargePercent2"}),
      #"Expanded Truck" = Table.ExpandRecordColumn(#"Expanded TaxCode", "Truck", {"TruckKey", "TruckID", "Hauler"}, {"TruckKey", "TruckID", "Hauler"}),
      #"Expanded Hauler" = Table.ExpandRecordColumn(#"Expanded Truck", "Hauler", {"HaulerKey", "HaulerID", "HaulerName"}, {"HaulerKey", "HaulerID", "HaulerName"}),
      #"Expanded RatesAndAmounts" = Table.ExpandRecordColumn(#"Expanded Hauler", "RatesAndAmounts", {"MaterialRateOriginal", "FreightRateOriginal", "SurchargeRateOriginal", "MaterialAmountCalculated", "FreightAmountCalculated", "SurchargeAmountCalculated", "MaterialTaxCalculated", "MaterialTax2Calculated", "FreightTaxCalculated", "FreightTax2Calculated", "SurchargeTaxCalculated", "SurchargeTax2Calculated", "HaulerRateOriginal", "HaulerAmountCalculated"}, {"MaterialRateOriginal", "FreightRateOriginal", "SurchargeRateOriginal", "MaterialAmountCalculated", "FreightAmountCalculated", "SurchargeAmountCalculated", "MaterialTaxCalculated", "MaterialTax2Calculated", "FreightTaxCalculated", "FreightTax2Calculated", "SurchargeTaxCalculated", "SurchargeTax2Calculated", "HaulerRateOriginal", "HaulerAmountCalculated"}),
      //These are nullable fields, and they have to be expanded manually. Make sure to rename column names if any are duplicates like the Name columns
      #"Expanded Salesperson" = Table.ExpandRecordColumn(#"Expanded RatesAndAmounts", "Salesperson", {"Name"}),
      #"Renamed Columns" = Table.RenameColumns(#"Expanded Salesperson",{{"Name", "OrderSalespersonName"}}),
      #"Expanded Salesperson.1" = Table.ExpandRecordColumn(#"Renamed Columns", "Salesperson.1", {"Name"}),
      #"Renamed Columns1" = Table.RenameColumns(#"Expanded Salesperson.1",{{"Name", "CustomerSalespersonName"}}),
      #"Expanded HaulZone" = Table.ExpandRecordColumn(#"Renamed Columns1", "HaulZone", {"HZFreightType"}),
      //After the nullable fields are expanded, make sure to replace the errors with a blank
      #"Replaced Errors" = Table.ReplaceErrorValues(#"Expanded HaulZone", {{"CustomerSalespersonName", ""}, {"OrderSalespersonName", ""}, {"HZFreightType", ""}}),
      //Make sure to rename any other duplicate headers
      #"Renamed Columns2" = Table.RenameColumns(#"Replaced Errors",{{"Description", "PricingDescription"}, {"Description.1", "OrderDescription"}}),
      //Use the Detect Type tool to set the header types automatically, if they are not already set
      #"Changed Type" = Table.TransformColumnTypes(#"Renamed Columns2",{{"TicketKey", Int64.Type}, {"TicketNumber", type number}, {"Void", type logical}, {"NetWeight", type number}, {"Operator", type text}, {"InvoiceNum", Int64.Type}, {"BatchNum", type text}, {"InvoiceHistoryKey", Int64.Type}, {"InvoiceDate", type date}, {"TicketDate", type date}, {"TicketDateTime", type datetime}, {"UTCOffset", Int64.Type}, {"OrderProductKey", Int64.Type}, {"PricingDescription", type text}, {"FreightType", type text}, {"ProductKey", Int64.Type}, {"ProductID", type text}, {"ProductDescription", type text}, {"UnitOfMeasure", type text}, {"LocationKey", Int64.Type}, {"LocationName", type text}, {"LocationDescription", type text}, {"YardKey", Int64.Type}, {"YardName", type text}, {"YardDescription", type text}, {"OrderKey", Int64.Type}, {"OrderNumber", Int64.Type}, {"OrderDescription", type text}, {"DefaultJob", type text}, {"PONumber", type text}, {"OpenProductOrder", type logical}, {"Status", type text}, {"DeliveryLocation", type text}, {"PayType", type text}, {"UseHaulZones", type logical}, {"CustomerKey", Int64.Type}, {"CustomerID", type text}, {"CustomerName", type text}, {"TermsCode", Int64.Type}, {"CustomerSalespersonName", type text}, {"OrderSalespersonName", type text}, {"RegionKey", Int64.Type}, {"RegionName", type text}, {"RegionDescription", type text}, {"Code", type text}, {"Description.2", type text}, {"MaterialPercent", type number}, {"MaterialPercent2", type number}, {"FreightPercent", type number}, {"FreightPercent2", type number}, {"SurchargePercent", type number}, {"SurchargePercent2", type number}, {"TruckKey", Int64.Type}, {"TruckID", type text}, {"HaulerKey", Int64.Type}, {"HaulerID", type text}, {"HaulerName", type text}, {"HZFreightType", type any}, {"MaterialRateOriginal", type number}, {"FreightRateOriginal", Int64.Type}, {"SurchargeRateOriginal", Int64.Type}, {"MaterialAmountCalculated", type number}, {"FreightAmountCalculated", type number}, {"SurchargeAmountCalculated", type number}, {"MaterialTaxCalculated", type number}, {"MaterialTax2Calculated", type number}, {"FreightTaxCalculated", type number}, {"FreightTax2Calculated", type number}, {"SurchargeTaxCalculated", type number}, {"SurchargeTax2Calculated", type number}, {"HaulerRateOriginal", Int64.Type}, {"HaulerAmountCalculated", type number}}),
      #"Replaced Value" = Table.ReplaceValue(#"Changed Type","U","Per Unit",Replacer.ReplaceText,{"FreightType"}),
      #"Replaced Value1" = Table.ReplaceValue(#"Replaced Value","L","Per Load",Replacer.ReplaceText,{"FreightType"}),
      #"Replaced Value2" = Table.ReplaceValue(#"Replaced Value1","A","Active",Replacer.ReplaceText,{"Status"}),
      #"Replaced Value3" = Table.ReplaceValue(#"Replaced Value2","I","Inactive",Replacer.ReplaceText,{"Status"}),
      #"Replaced Value4" = Table.ReplaceValue(#"Replaced Value3","C","Closed",Replacer.ReplaceText,{"Status"}),
      #"Replaced Value5" = Table.ReplaceValue(#"Replaced Value4","C","Charge Hide",Replacer.ReplaceText,{"PayType"}),
      #"Replaced Value6" = Table.ReplaceValue(#"Replaced Value5","D","Credit Card",Replacer.ReplaceText,{"PayType"}),
      #"Replaced Value7" = Table.ReplaceValue(#"Replaced Value6","K","Check",Replacer.ReplaceText,{"PayType"}),
      #"Replaced Value8" = Table.ReplaceValue(#"Replaced Value7","S","Charge Show",Replacer.ReplaceText,{"PayType"}),
      #"Replaced Value9" = Table.ReplaceValue(#"Replaced Value8","X","Cash",Replacer.ReplaceText,{"PayType"})
      in
      #"Replaced Value9"

  13. When prompted to Specify How To Connect , click "Edit Credentials" and use Anonymous Access to connect.

Using Telerik Report Parameters

Required Parameters

When building your reports within Telerik, you have the ability to link your GraphQL Where Clause directly to dynamic parameters within Telerik to filter your data.

  1. Ensure that you have your Where Clause set up within your GraphQL Query.

Tip: For more information about GraphQL Where Clauses, check out our article on Using Parameters in GraphQL.

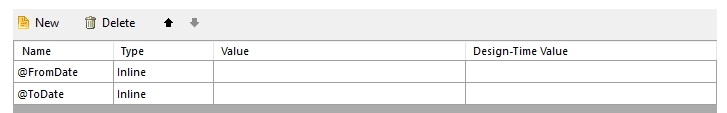

  1. When you copy your query Body over from Insomnia, it should auto-generate Telerik parameter connectors in your variables.

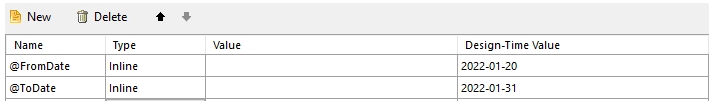

    1. Make sure the Type is set to Inline for any Parameters that are passed to your GraphQL Body.

  6. Setup the Telerik Parameter in the Report Parameter Editor pop-up

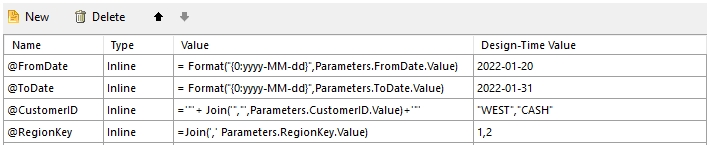

  7. Some GraphQL Where clause formats will need to add extra formatting in your Value

    • Integers: Make sure your body does not have quotes around the @variable in the Body.

    • Dates: Make sure your body does have quotes around the @variable in the Body.

      • You will also need to add the following formatting to the Value expression to ensure that the date is in the correct Year-Month-Day format: = Format("{0:yyyy-MM-dd}", Parameters.NAME.Value )

    • String Arrays: Make sure your body does not have quotes and does have brackets around the @variable in the Body.

      • You will also need to add the following formatting to the Value expression to ensure that each value selected is wrapped in quotes and separated by commas: ='"' + Join('","', Parameters.NAME.Value ) + '"'

    • Integer Arrays: Make sure your body does not have quotes and does have brackets around the @variable in the Body.

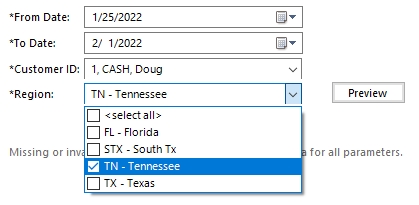

  9. Click Next to preview your data using the Design-Time Value, then click Finish.

Optional Parameters

In addition to Required Parameters that directly filter what is returned from your Data Source, you can also use Telerik by itself to create optional parameters and filters.

  2. Add in a new Parameter in the Report Parameter Editor pop-up

  3. Click OK to close the pop-up.

  5. Add a new Filter that you will map to your new Report Parameter

    • Since we want this parameter to pull in everything when blank or filter to one customer when filled out, we will need to add in more to the expression than a simple filter.

  6. Under the Expression side of the filter editor, click on the drop-down arrow and select <Expression>

  9. Begin the conditional IIf statement with a check to see if the parameter is blank.

    2. In the text box, click between the end of the Value and the parenthesis and add in an equal sign and an empty quote: = ""

  10. Click in the text box after the empty quotes and add a comma to begin the truePart of the IIf statement.

    1. Note: Here, we want nothing to happen if the expression is true (the parameter is blank).

    2. Add in another empty quote: ""

  11. After the truePart, add another comma to begin the falsePart.

    1. Navigate to Fields and double-click on the field you want to populate if the parameter is not blank (what it will be matching).

Note: Here, we want the Customer ID to populate if the expression is false (the parameter is not blank).

  2. Click OK to close the Expression Editor.

  3. Under the Value side of the filter editor, click on the drop-down arrow and select the Parameter.

  5. Navigate to the Home tab on the top of the Report Designer and click Preview to test out the report.

    • You should be able to leave your new parameter blank (you may have to click inside of the field and then click out in the report designer so it registers and blank) or type in a value to filter the report to that single value

Handling Nullable Tables in Telerik

Sometimes, you may have a table linked in your GraphQL query that can be set or completely blank depending on the parent table it is connected to.

=Fields.Order.Salesperson.Name

"An error has occurred while processing TextBox 'textBox2': The expression contains object 'Name' that is not defined in the current context."

If you do receive this error for the Salesperson Name field (or any other field), there is a workaround you can use to display the name when it is set or hide the object entirely when it is blank.

  4. Find the Data section of the Properties.

  5. Click on the "..." button to edit the Bindings.

  7. Add a new Binding.

    1. Set the Property Path to "DataSource"

    2. The Expression needs to be the parent of the field you are wanting to display. In this case, we want to see = Fields.Order.Salesperson.Name so we will set the Expression to = Fields.Order.Salesperson

  9. In the field where you want to show the salesperson name, you only need to add the second half of the expression we referenced for the DataSource = Fields.Order.Salesperson.Name.

    1. If you do not want the field to be entirely blank, you can set a "NoDataMessage" and "NoDataStyle" in the Properties Panel

Common Abbreviations

You may encounter some common abbreviations in the fields available to retrieve with GraphQL. Here is a repository of those abbreviations and what they mean so that you can replace them in your reports.

Customer

Tax Status

  • T = Taxed

  • X = Exempt

Credit Status

  • O = Open Account

  • C = Cash Only

  • N = Do Not Sell

Location

Default Dispatch Type

  • PD - FastWeigh POD

  • CP - Create at Pickup

  • CD - Create at Delivery

  • RP - Receive at Pickup

  • RD - Receive at Delivery

  • LC - Load Count Only

Order

Pay Type

  • C = Charge Hide

  • D = Credit Card

  • K = Check

  • S = Charge Show

  • X = Cash

Status

  • A = Active

  • I = Inactive

  • C = Closed

Order Product

Freight Type, Surcharge Type, and Order Quantity Type

  • U = Per Unit

  • L = Per Load

Status

  • A = Active

  • I = Inactive

  • C = Closed

Quote

Pay Type

  • C = Charge Hide

  • D = Credit Card

  • K = Check

  • S = Charge Show

  • X = Cash

Status

  • B = Bidding

  • P = Pending

  • C = Accepted

  • R = Rejected

  • E = Expired

  • A = Awarded

Quote Product

Status

  • A = Active

  • I = Inactive

  • C = Closed

Request Hauler

Ticket Type

  • PD - FastWeigh POD

  • CP - Create at Pickup

  • CD - Create at Delivery

  • RP - Receive at Pickup

  • RD - Receive at Delivery

  • LC - Load Count Only

Ticket

Manual Weigh

  • 0 or False = Weight from a scale

  • 1 or True = Manually typed weight

Connecting GraphQL to Telerik Report Designer

Note: Make sure you are running Telerik Report Designer version 14.0.20.219 or later.

    1. Enter in your GraphQL Endpoint URL into the Service URL. Example: https://fwt.fast-weigh.dev/v1/graphql

    3. Set the Method to Post

    4. Enter the Body from the Insomnia plugin "Fast-Weigh: Copy Telerik Body"

    5. Set the Data Selector to $.data.*

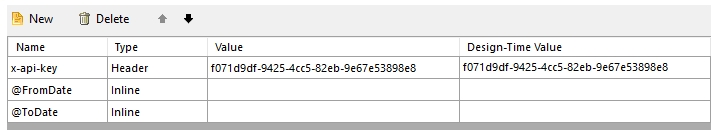

  4. Create a new parameter called x-api-key.

    1. Set the Type to Header

  5. If you are using a WHERE clause in your Body, check out this article for information about setting up Inline parameters.

Note: In our example, our Inline Parameters are the @FromDate and @ToDate.
