# Dashboard

{% hint style="info" %}
Load-Out is an additional feature. If you would like to add Load-Out to your Fast Weigh subscription contact us at *865-219-2980* or <support@tacinsight.com>.

Load-Out must be configured on the *Ticketing Application* before use.
{% endhint %}

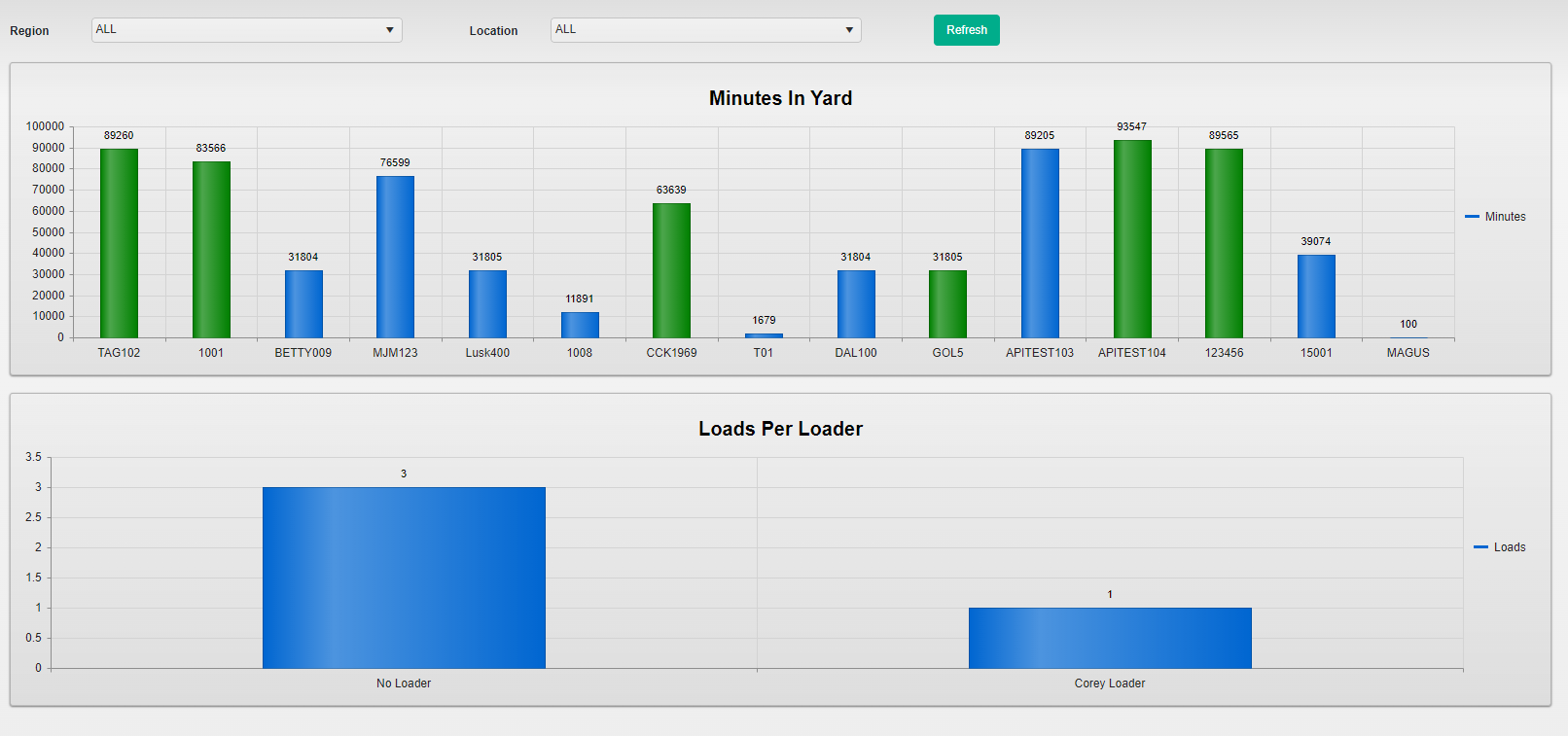

In the Load-Out Dashboard screen, you are presented with two graphs:

<figure><img src="https://490131596-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F0LJDMCSYOqplCEgCo73X%2Fuploads%2FakrXb1LS4G7VpZhlU9j0%2Fimage.png?alt=media&#x26;token=e8f8d46a-5e15-4132-aee1-49a993182215" alt=""><figcaption><p>Load-Out Dashboard tab</p></figcaption></figure>

You are able to filter the information presented on the table by selecting a **Region** and a **Location**. Setting a filter will show any relevant trucks or loaders on their respective tables.

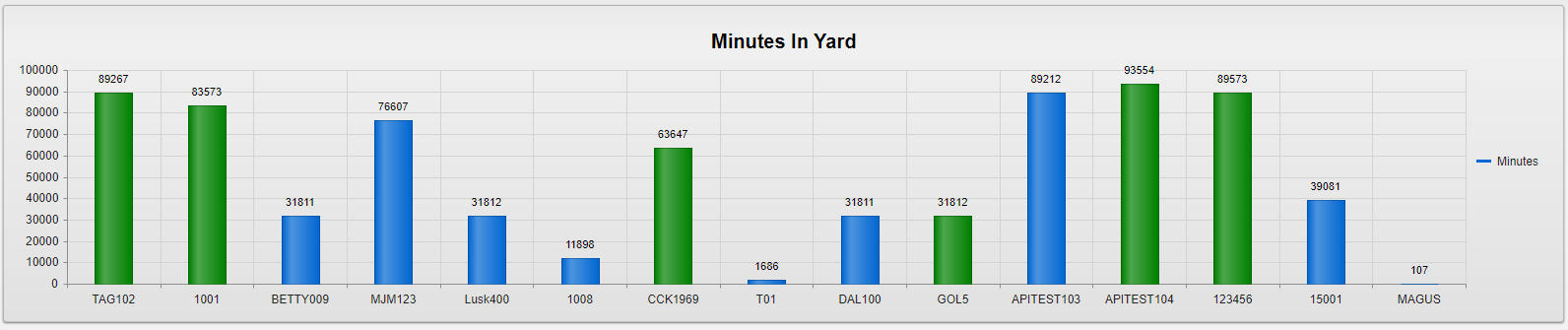

### Minutes In Yard Graph

<figure><img src="https://490131596-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F0LJDMCSYOqplCEgCo73X%2Fuploads%2F3LkYOZelGXksyAhn9H5L%2Fimage.png?alt=media&#x26;token=d325d8e9-ed31-4f28-8251-7e8c41397f2f" alt=""><figcaption><p>Minutes In Yard Graph on Load-Out Dashboard tab</p></figcaption></figure>

This graph presents you with how many minutes your trucks have been actively in the yard. Trucks are set "In Yard" via the *Desktop Ticketing App*, and once they have been marked "in yard" they will populate in this graph. The minutes a truck is in the yard are represented along the y-axis, and the trucks are listed along the x-axis.

The trucks represented by blue bars are *not loaded* with material and are in the yard.&#x20;

The trucks represented by green bars are *loaded* with material and are in the yard.

{% hint style="info" %}
For trucks to be labeled as Loaded you must have a "Loader" marking the trucks as Loaded in the Loader app.
{% endhint %}

### Loads Per Loader Graph

<figure><img src="https://490131596-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F0LJDMCSYOqplCEgCo73X%2Fuploads%2Fxqn9kdiC0WEqFhLh6w54%2Fimage.png?alt=media&#x26;token=12838751-ffcd-4188-8cae-207690774128" alt=""><figcaption><p>Loads Per Loader Graph on Load-Out Dashboard tab</p></figcaption></figure>

This graph represents how many loads a Loader has completed in a day. Along the y-axis are the amount of loads, and along the x-axis are the loaders.&#x20;

{% hint style="info" %}
You must have a *Loader App* set up for a loader to populate on this graph.

If you are interested in adding Load-Out and the Loader application to your Fast Weigh subscription please contact us at *865-219-2980* or <support@tacinsight.com>.
{% endhint %}
