# Loadrite

{% hint style="warning" %}
Fast-Weigh's integration with Loadrite in-cab equipment is limited in scope. Please consult with a Fast-Weigh Repersenative to determine if integrating with this hardware is right for you.
{% endhint %}

## LG500

***

### Overview

The **LG500** Gateway is a data communication hub that centralizes payload data from multiple Loadrite scales via ethernet network.

### Setup

{% stepper %}
{% step %}

### Hook up LG500 on Rear Panel

There are two panels on the LG500, the "Rear" and the "Front". To get started, please complete the following steps using the LG500's Rear Panel.

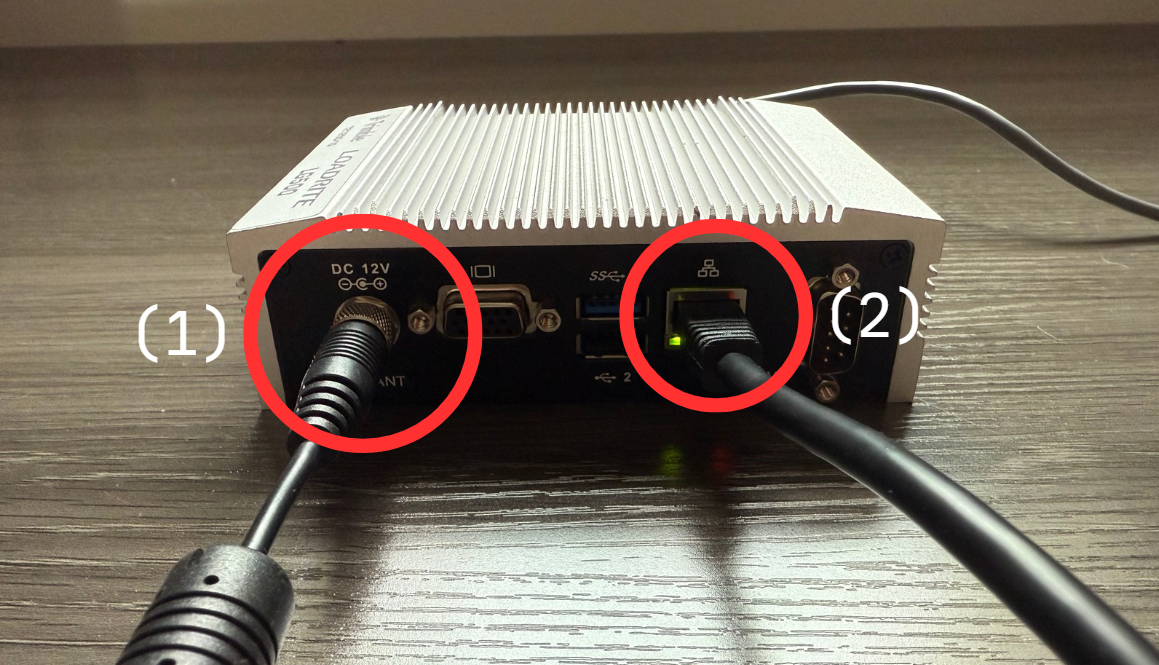

* [ ] **( 1 )** Plug up the DC 12V Power port to an outlet.
* [ ] **( 2 )** Connect a nearby **PC** to the **LG500** via the Ethernet port on same panel face.

<figure><img src="https://490131596-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F0LJDMCSYOqplCEgCo73X%2Fuploads%2FylhrRtwfQBkd0oe0IWej%2Fimage_2025-08-11_141500515.png?alt=media&#x26;token=5d21ee3e-2857-4d6b-a1d0-dc8c10f965f6" alt=""><figcaption></figcaption></figure>
{% endstep %}

{% step %}

### Open the Loadrite Communications Interface ( LCI )

The rear panel's ethernet port is bound to a static IP of **\[ 192.168.88.3 ]**

To login to the LG500 CLI, head to that IP Address on the PC connected to that port

<figure><img src="https://490131596-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F0LJDMCSYOqplCEgCo73X%2Fuploads%2FVl4nTR9jsLZnHKipGAXQ%2Fimage.png?alt=media&#x26;token=894cf882-2b89-475d-8ea0-043ed6f97dae" alt=""><figcaption></figcaption></figure>
{% endstep %}

{% step %}

### Login to LCI

Click the **\[ Log In ]** button in the LCI Navbar. The login credentials by default should be the following.

Username: **sa**

Password: **lcc**

<figure><img src="https://490131596-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F0LJDMCSYOqplCEgCo73X%2Fuploads%2FGr4u7gvRXxkTJvNSptMG%2Fimage.png?alt=media&#x26;token=f3bb6127-2324-44b5-bd71-70122816691b" alt=""><figcaption></figcaption></figure>

{% endstep %}

{% step %}

### Head to /configuration

Once logged in everything will look the same, but you can now head to the URL **192.168.88.3/configuration** to setup the LG500 for your network.&#x20;

{% hint style="info" %}
You have to manually add the /configuration at the end of the IP in the URL, the navbar option "Configuration" as seen in the image will not appear otherwise.
{% endhint %}

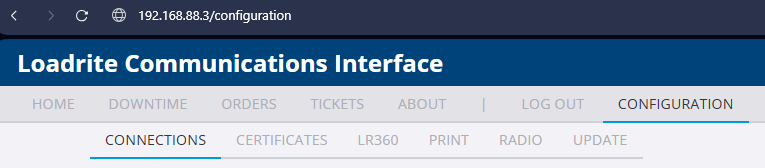

<figure><img src="https://490131596-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F0LJDMCSYOqplCEgCo73X%2Fuploads%2FmDhykRXJEgDNG9REZqMK%2Fimage.png?alt=media&#x26;token=dd341751-14e2-4567-beb8-16dd3d4788dc" alt=""><figcaption></figcaption></figure>
{% endstep %}

{% step %}

### Alter Connections

Under Connections, you can set your LG500 to a static IP, which Fast-Weigh and other Loadrite devices can use to communicate with it. If you plan to use a static IP you will need to input these fields.

* [ ] **IP**: Choose an IP
* [ ] **Netmask**: Set to 255.255.255.0
* [ ] **Gateway**: Your networks Gateway IP
* [ ] **DNS:** Set to 8.8.8.8
* [ ] **DNS Configuration:** Set to nameserver 8.8.8.8

After making the appropriate changes, select **\[ Submit and Reboot ].** If you are near your LG500, you will hear it beep as it turns off and on again. After it has rebooted, you can check the **\[ About ]** tab to see the changes made.

<figure><img src="https://490131596-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F0LJDMCSYOqplCEgCo73X%2Fuploads%2FcWKCeci62wjbO0nJs2Nx%2Fimage.png?alt=media&#x26;token=0f27b1f0-627e-4d2a-b4e0-9b97ba7514dc" alt=""><figcaption><p>Example Connections Setup</p></figcaption></figure>
{% endstep %}

{% step %}

### Hooking up LG500 on the Front Panel

You can now unplug the **Rear Panel's Ethernet** cable from your PC.&#x20;

To finish opening up the **LG500** to communication across your network, use the **Front Panel's Ethernet Port** to hook up your **LG500** to your network's **switch/router**.

<figure><img src="https://490131596-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F0LJDMCSYOqplCEgCo73X%2Fuploads%2FQnQFhAFXHAeC1QKJ6qN2%2Fimage.png?alt=media&#x26;token=afb82256-b6ee-4698-abc9-4c2b4e6a56a1" alt=""><figcaption></figcaption></figure>
{% endstep %}
{% endstepper %}

### Connect LG500 in Fast-Weigh Ticketing App

{% stepper %}
{% step %}

### Navigate to \[ Server Settings ]

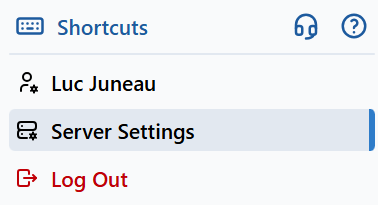

<figure><img src="https://490131596-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F0LJDMCSYOqplCEgCo73X%2Fuploads%2FYtZZRx5cF2eDZflW3IbL%2Fimage.png?alt=media&#x26;token=30069b1e-10f9-4a75-9bc8-33825885d8e3" alt=""><figcaption></figcaption></figure>
{% endstep %}

{% step %}

### Click \[ Beta Features ]

<figure><img src="https://490131596-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F0LJDMCSYOqplCEgCo73X%2Fuploads%2Fy5JLiSjCpywdZtEw6UiL%2Fimage.png?alt=media&#x26;token=1711a5ea-60b1-455c-ad43-517709ad7084" alt=""><figcaption></figcaption></figure>
{% endstep %}

{% step %}

### Enable \[ Add/Edit Device - Loadrite ]

<figure><img src="https://490131596-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F0LJDMCSYOqplCEgCo73X%2Fuploads%2FnCsL3YX64BasnyrL6l9m%2Fimage.png?alt=media&#x26;token=702b0816-64d2-4352-8999-23d0d41d211a" alt=""><figcaption></figcaption></figure>
{% endstep %}

{% step %}

### Click \[ + Add Device ]

<figure><img src="https://490131596-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F0LJDMCSYOqplCEgCo73X%2Fuploads%2F9eEN01Toz8hAnCPR9H8p%2Fimage.png?alt=media&#x26;token=820b07d2-f376-425b-82f8-e9ef10c7633c" alt=""><figcaption></figcaption></figure>
{% endstep %}

{% step %}

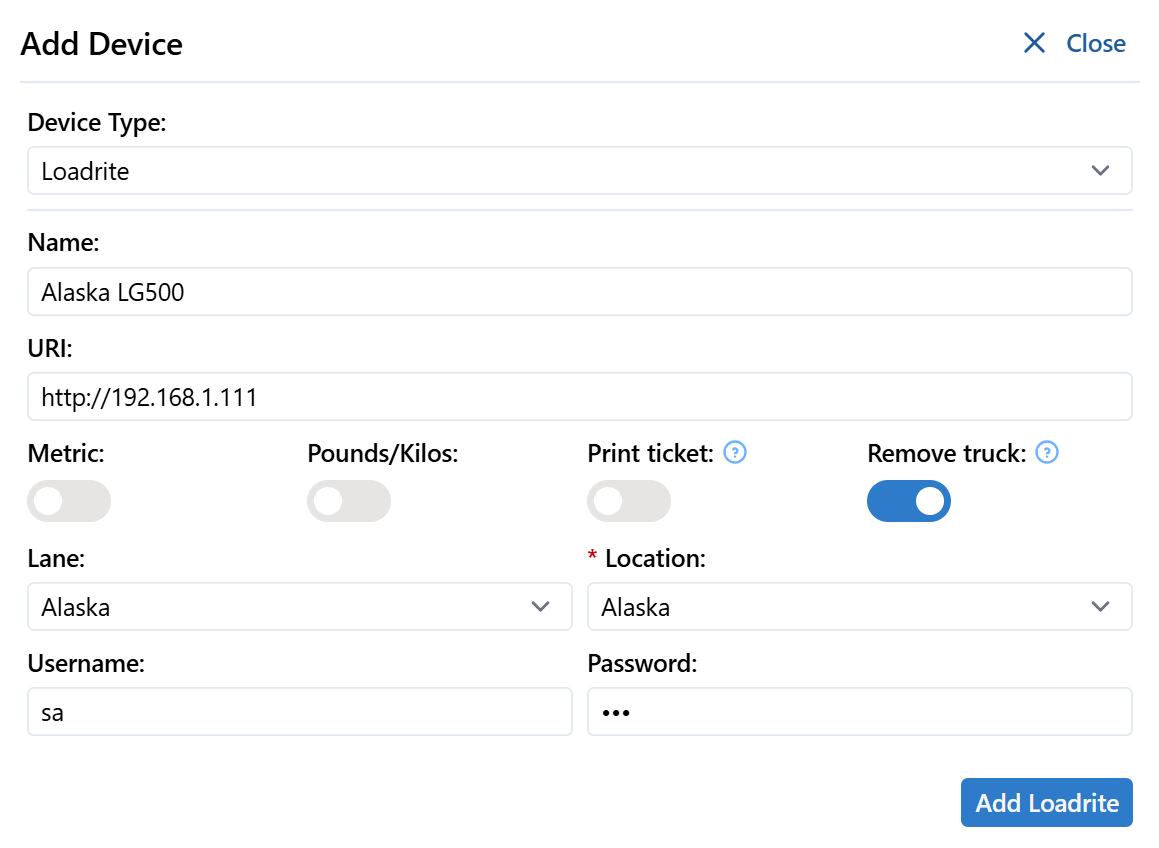

### Fill out LG500 Device Info

* [ ] **Device Type**: Set to Loadrite
* [ ] **URI**: http\://{whatever-you-set-your-LG500-ip-to}
* [ ] **Username**: sa
* [ ] **Password**: lcc

<figure><img src="https://490131596-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F0LJDMCSYOqplCEgCo73X%2Fuploads%2FtA0sqA9LLylNriuAVxyE%2Fimage.png?alt=media&#x26;token=9c54e36b-5ca5-41b6-acc6-cadef5f5695a" alt=""><figcaption></figcaption></figure>
{% endstep %}

{% step %}

### Click \[ Add Loadrite ]

<figure><img src="https://490131596-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F0LJDMCSYOqplCEgCo73X%2Fuploads%2FYbY7sTCfl7EapHYi0xOO%2Fimage.png?alt=media&#x26;token=9a86d28c-729c-4e44-b622-52301cccb09c" alt=""><figcaption></figcaption></figure>
{% endstep %}
{% endstepper %}

### Use

Once you have finished setting up your LG500 and adding it as a Device into Fast-Weigh, you should be able to see any tickets created on the assigned lane on the LG500 LCI, which you can now more-easily access by simply using the IP assigned during config, instead of using the rear-panel ethernet port, though changing **LG500** config settings in the LCI via this IP is **NOT RECOMENDED**.

Furthermore, you can now use the LG500's assigned IP to connect it to the L5000. To do this, follow the walkthrough below.

***

## L5000

***

### Overview

The L5000 Loadrite Weighing System measures the weights of loads lifted by wheel loaders and similar machines that use hydraulic rams to lift the load.

### Setup

{% stepper %}
{% step %}

### Hook up and Turn on L5000

Hook up the L5000 via USB-C

<figure><img src="https://490131596-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F0LJDMCSYOqplCEgCo73X%2Fuploads%2FxLCVE8s6o9NJYI6KvWIM%2Fimage.png?alt=media&#x26;token=857831d3-b136-47f8-9b86-e56c93584a0d" alt=""><figcaption></figcaption></figure>

Turn on the device by pressing the Power button on the L5000's top side

<figure><img src="https://490131596-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F0LJDMCSYOqplCEgCo73X%2Fuploads%2FvN80V9Nho4EG1ACyhM6v%2Fimage.png?alt=media&#x26;token=bfd149ae-32ea-4d65-bf06-dd8c048bd1a6" alt=""><figcaption></figcaption></figure>
{% endstep %}

{% step %}

### Navigate to \[ Settings > Setup > Enter Access Code ]

<figure><img src="https://490131596-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F0LJDMCSYOqplCEgCo73X%2Fuploads%2FmQFm3tz47keSNowTRqMH%2Fimage.png?alt=media&#x26;token=ac943ebf-50d4-42f1-a2f7-7f63bc0bc522" alt=""><figcaption></figcaption></figure>

Once prompted, enter your L5000 access code and click \[ ✅ ]  to configure further setup.

<figure><img src="https://490131596-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F0LJDMCSYOqplCEgCo73X%2Fuploads%2FXVfgdbPFhitsMgcXmpz6%2Fimage.png?alt=media&#x26;token=5ff4fea4-20ee-49bf-971d-14f7297a013e" alt=""><figcaption></figcaption></figure>
{% endstep %}

{% step %}

### Navigate to \[ Configuration > Communications ]

#### ( 1 ) Navigate to \[ Wifi ] to connect your L5000 to your network

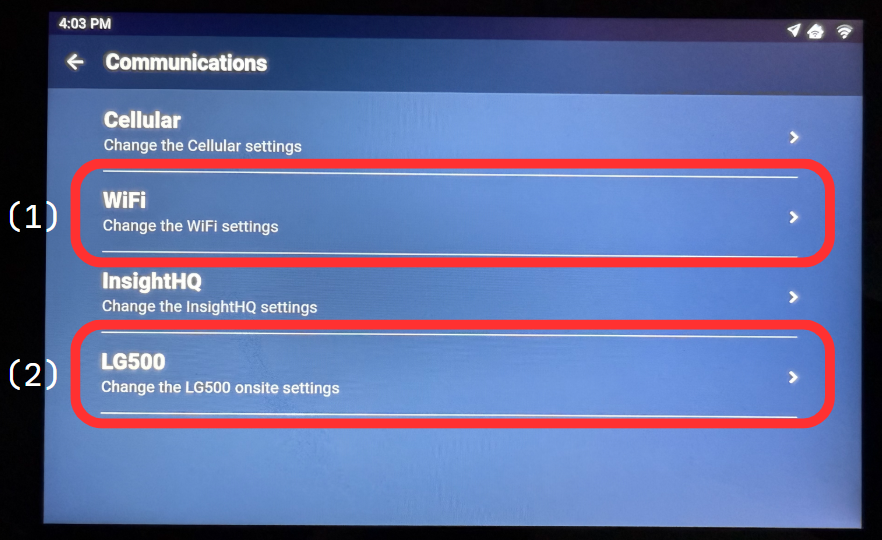

<figure><img src="https://490131596-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F0LJDMCSYOqplCEgCo73X%2Fuploads%2Fxqs2mz7lVhceDlkSsSIC%2Fimage.png?alt=media&#x26;token=eb79fdc5-f85f-413b-ab40-45a0e1450474" alt=""><figcaption></figcaption></figure>

#### ( 2 ) Navigate to \[ LG500 ] to connect your L5000 to the LG500

Once there you can input your LG500's assigned IP

<figure><img src="https://490131596-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F0LJDMCSYOqplCEgCo73X%2Fuploads%2F86HWuO8MsPUpuJeNsLQO%2Fimage.png?alt=media&#x26;token=114c344e-8648-4b5a-a35a-524303babb31" alt=""><figcaption></figcaption></figure>
{% endstep %}
{% endstepper %}

### Use

If you have completed the LG500 setup and the L5000 setup you should now be ready to start ticketing using these devices.

To do so, just select a truck and product on the Fast-Weigh Lane that the LG500 is assigned and stash the ticket. The L5000 should then popup with a truck symbol allowing you to select that stashed ticket and finish loading it from the L5000.

***

## Compatible Fields and Features

<table><thead><tr><th width="176">Field / Feature</th><th width="162">Compatible</th><th>Notes</th></tr></thead><tbody><tr><td>Haul Zone</td><td>No</td><td>Ticket will not post  to the portal</td></tr><tr><td>Tax Code Group</td><td>No</td><td>Ticket will not post to the portal</td></tr><tr><td>Ticket PO (required)</td><td>No</td><td>Ticket will not post to the portal</td></tr><tr><td>UDFs (required)</td><td>No</td><td>Ticket will not post to the portal</td></tr><tr><td>Ship To</td><td>No</td><td>Field will be missing on ticket</td></tr><tr><td>Ticket Notes</td><td>No</td><td>Field will be missing on ticket</td></tr><tr><td>Ticket PO</td><td>No</td><td>Field will be missing on ticket</td></tr><tr><td>Inbound Orders</td><td>No</td><td>Ticket won't print</td></tr><tr><td>"Reprint Last"</td><td>No</td><td></td></tr><tr><td>FOB Freight Pricing</td><td>No</td><td></td></tr><tr><td>Outbound Tickets</td><td>Yes</td><td></td></tr><tr><td>Product Freight Pricing</td><td>Yes</td><td></td></tr><tr><td>Freight Matrix</td><td>Yes</td><td></td></tr><tr><td>Check-In Kiosk</td><td>Yes</td><td></td></tr><tr><td>Ticket Reprint on Kiosk</td><td>Yes</td><td></td></tr><tr><td>Driver / Customer SMS on ticket</td><td>Yes</td><td></td></tr><tr><td>Price Adjustments</td><td>Yes</td><td></td></tr><tr><td>Optional UDFs</td><td>1/2</td><td>Will appear on ticket if set before stash</td></tr></tbody></table>
